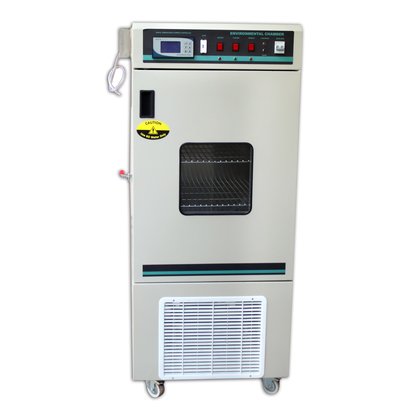

Humidity Chamber Manufacturer
FEATURES
- Heavy-duty stainless steel construction
- Illuminated interior.
- Multi-pane viewing door prevents condensation to ensure a proper view.
- Heavy-duty solid stainless steel duly electro-polished perforated type trays which are easy to clean and adjustable.
Main features
- Precision control for temperature and Humidity
- Ultrasonic Humidification for maintenance-free humidity control
- Ergonomically Designed for versatile usage
- Low Maintenance and Energy Efficiency
SPECIFICATIONS
A humidity chamber is precision testing equipment that works with very tight tolerances. Temperature variations within the chamber shouldn’t deviate more than 2 to 3 degrees Celsius, and the humidity, should not exceed 5 percent either way. When it comes to photostability chambers, the light emitted should be 1.2 million lux hours and it should emit more than 200 watts of UV energy for testing samples.
Established as an organization in 2004, “Ferrotek Equipment.” in Ghaziabad, Uttar Pradesh, India, is a well-known manufacturer and supplier of humidity chambers, which are enclosures used to test the effects of humidity and temperature on biological items, industrial products, civil products, materials, electronic devices, and components, etc. Temperature chambers help evaluate material and product quality and reliability under low and high humidity ranges and the product’s decay and degradation due to them.
The humidity chamber has a double-walled door with a toughened glass viewing window that enables sample observation without affecting the chamber’s internal temperature. The door is fixed on sturdy plate hinges with a reliable locking mechanism, and a durable magnet gasket serves as a sealant against atmospheric infiltration. A second door made of clear acrylic will be provided, mounted on SS hinges, with a magnetic catch to enable full visibility of the inner chamber while keeping the test process condition at a minimum. The humidity test chamber is a testing instrument that is used for testing the capacity as well as the quality of several products. A wide range of temperatures and humidity levels can be accommodated in the offered chamber. The long-term stability of numerous goods in the cosmetics sector and other industries can be tested using straightforward testing methodologies. When evaluating a food product’s ability to maintain quality in humid environmental conditions and at elevated temperatures, a temperature chamber is used. It can also be used to test the resilience of various medicinal goods in harsh environmental conditions. This is a crucial testing tool for analyzing the long-term effects of humidity. The humidity test chamber has two walls. Different climatic conditions can be handled by the chamber. The interior chamber is constructed of mirror-finished, 304 stainless steel. The exterior wall is constructed from mild steel with a powder coating finish or, for better aesthetics, stainless steel 304 with or without an epoxy powder coating finish.
Temperature Controllers: Humidity
| A digital PID-based microprocessor controller cum indicator with a dual display of set and process value L.C of 0.1 C with pt-100 probe L.C of 1% rh with electronic sensor |
Temperature Range Accuracy and Uniformity | Ambient 5°C to 60°C +/-1 oC |
Humidity Range Accuracy | 40 to 95% Rh +/-3%Rh |
Cooling | Hermetically sealed, CFC-free ISI-marked compressor with safety devices for temperature control below ambient. |
Air Heaters | “U” type heating element |
Humidification | The humidity inside the chamber is created with the latest ultrasonic humidifiers, which produce 1-5 micrometers of water droplets which are absorbed by the air quickly. The cost of humidification is as low as 0.05 KW/KG/HR which is 1/15th of a conventional method. This system does not generate heat and it is almost maintenance-free. Ultrasonic Humidification / Steam Injection system through water boiler. |
Material Chamber Outer | Stainless Steel (304Grade) Powder Coated Steel/Stainless Steel (304Grade) |
Door | Double Walled door with heavy hinges Synthetic rubber gasket and a window for chamber inspection. |
Air Circulation | Continues operating Imported Motor with Blower. |
Safety | Over temperature cut off, Water level monitor, and Power Breaker |
Electric Supply | 220+/-10, 50Hz, 1 Phase. |
| Models | Material of Construction | |
|---|---|---|
| Interior | Exterior | |
| STD | S.S.304 Dull Finish | G.I Powder Coated |
| GMP | S.S.304 Dull Finish | S.S.304 Dull Finish |
| CGMP | S.S.316 Dull Finish | S.S.304 Dull Finish |
SIZES
Models | Capacity (in ltrs.) | Dimensions (W X D X H) | No. of Trays | |
Internal (mm) Width Depth Height | External (mm) Width Depth Height | |||
GMP-SC90L | 90 | 450 X 400 X 500 | 600 X 820 X 1050 | 3 |
GMP-SC227L | 227 | 600 X 630 X 600 | 750 X 1065 X 1180 | 4 |
GMP-SC325L | 325 | 600 X 630 X 900 | 750 X 1065 X 1480 | 6 |
GMP-SC400L | 400 | 600 X 630 X 1060 | 750 X 1065 X 1640 | 7 |
GMP-SC500L | 500 | 600 X 630 X 1350 | 750 X 1065 X 1905 | 8 |
GMP-SC600L | 600 | 800 X 800 X 950 | 950 X 1265 X 1530 | 6 |
GMP-SC800L | 800 | 800 X 800 X 1250 | 950 X 1265 X 1830 | 9 |
GMP-SC1000L | 1000 | 800 X 800 X 1570 | 950 X 1265 X 2150 | 11 |
Frequently Asked Questions
What is a humidity chamber?
A humidity chamber, also known as a humidity test chamber, is a controlled environment testing device designed to simulate and maintain precise levels of humidity and temperature. It is commonly used for various humidity-related tests and experiments.
What are the applications of humidity chambers?
Humidity chambers are used in industries such as electronics, materials science, pharmaceuticals, and food to conduct humidity testing, shelf-life studies, accelerated aging tests, and product quality assessments under controlled humidity conditions.
How do humidity chambers control humidity levels?
Humidity chambers use advanced systems, including humidifiers and dehumidifiers, to generate and maintain specific humidity levels within the chamber. These systems work in conjunction with sensors and controllers to regulate humidity accurately.
